Apollon creates uniform light windows in rooms

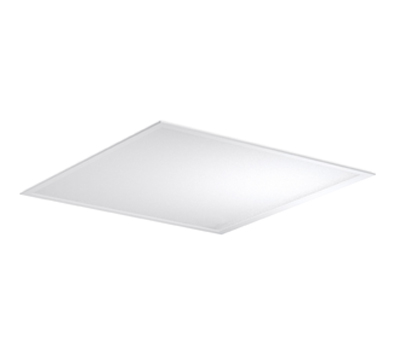

Apollon from Osram is a diverse, VDU-compliant (UGR19) LED luminaire for electrical contractors who place importance on both an intelligent light concept and many extras. The luminaires have the appearance of homogeneous 'windows of light' that can be grouped together to create light ceilings. Luminous flux was increased by 15% to 4,000 lumens compared to its predecessor model. The luminaire is therefore an efficient and economical replacement not only for 3-lamp but even for 4-lamp 4x18W (T8) and 4x14W (T5) louvre luminaires.

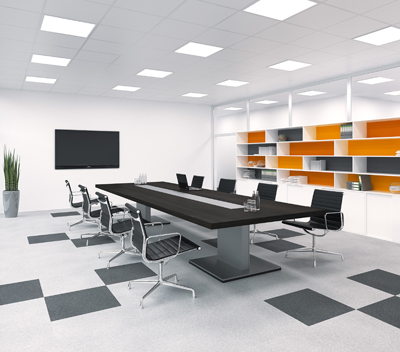

Whether as square lay-in luminaires for system ceilings, as surface-mounted luminaires or for suspended mounting, Apollon has highly diverse uses in offices and public buildings and is suitable for computer screen workstations, in conference rooms, foyers and circulation zones. A special feature is its absolutely homogeneous luminous surface without visible light points. The luminaires on the ceiling look like 'windows of light' and provide users with a wide range of design options; with Apollon they can create either light ceilings with individual light windows or large-area light ceilings. Thanks to the high luminous flux, less luminaires are needed for each room and the lighting is compliant to standards. Reflected glare, strong bright-dark contrasts and shadowing are also avoided with the especially uniform distribution of light.

Apollon features a flat design because the control gear is integrated in the luminaire. The high quality white plastic frame is an injection-moulded unit to avoid any disruptive gaps on the smooth surface, and thanks to the well-thought out installation concept, existing luminaires can be replaced directly without complex recabling. The integrated, large-dimensioned connection box enables rapid installation and also through-wiring up to a 2.5 mm wire diameter for all versions.
