OSRAM LED ENGIN LuxiGen™, LZ4-00D108

×

描述

Industry's most robust high power ceramic package with glass lens for high performance over life.
产品规格书
LZ4-00D108
English
下载
选择并订购
联系我们 支持

详情

产品参数

发射颜色
Violet (380-440 nm)
Blue (450-480 nm)
电功率
2.5 W
6.4 W
High
Ultra High
亮度
ΦE 典型值
1300 mW
光束角
∢ 典型值
115 °
工作温度
Top 最小值
-30 °C
Top 最大值
85 °C
尺寸
l 典型值
7.0 mm
w 典型值
7.0 mm
h 典型值
3.75 mm

订购信息

产品类别 描述 订购代码 可行
LZ4-00D108-0001 ● ΦE = 1.00 ... 1.60 W (IF = 700 mA)
● ΦE = 2.40 ... 3.80 W (IF = 700 mA) 		Q65115A4917 量产中

下载

产品规格书
LZ4-00D108 · Datasheet · PDF · en_US

应用说明
Chemical compatibility of LEDs · General information · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

资源
Electrical Simulation · Electrical Simulation · FOLDER

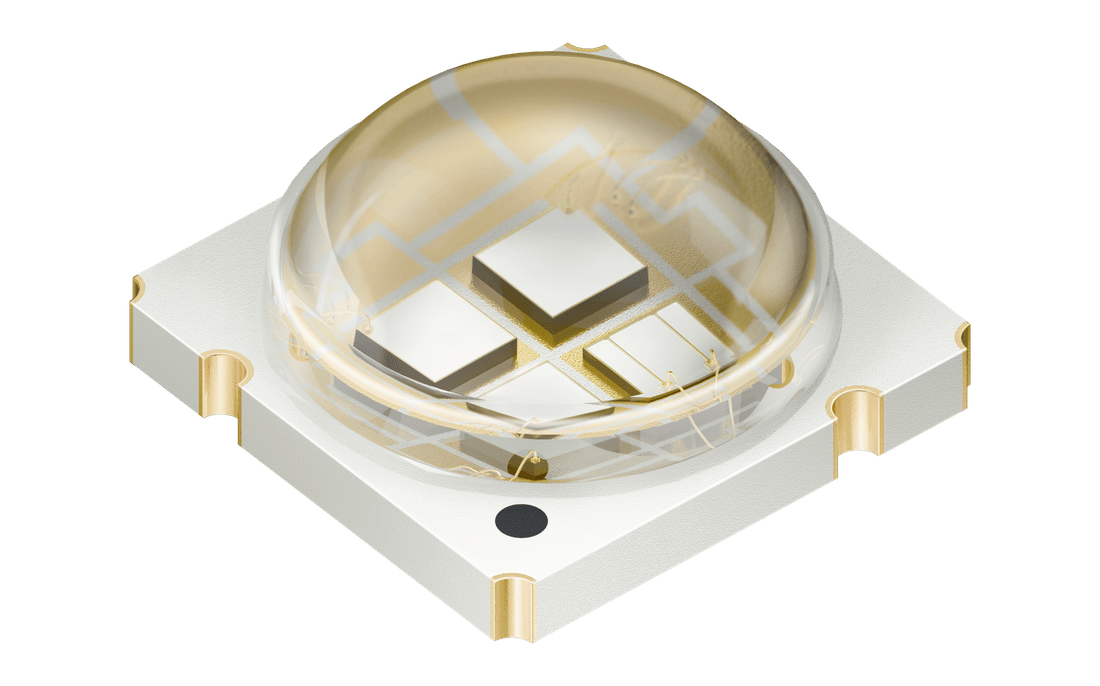

E067-0772-10A02 - LED ENGIN LuxiGen · Images · TIF
