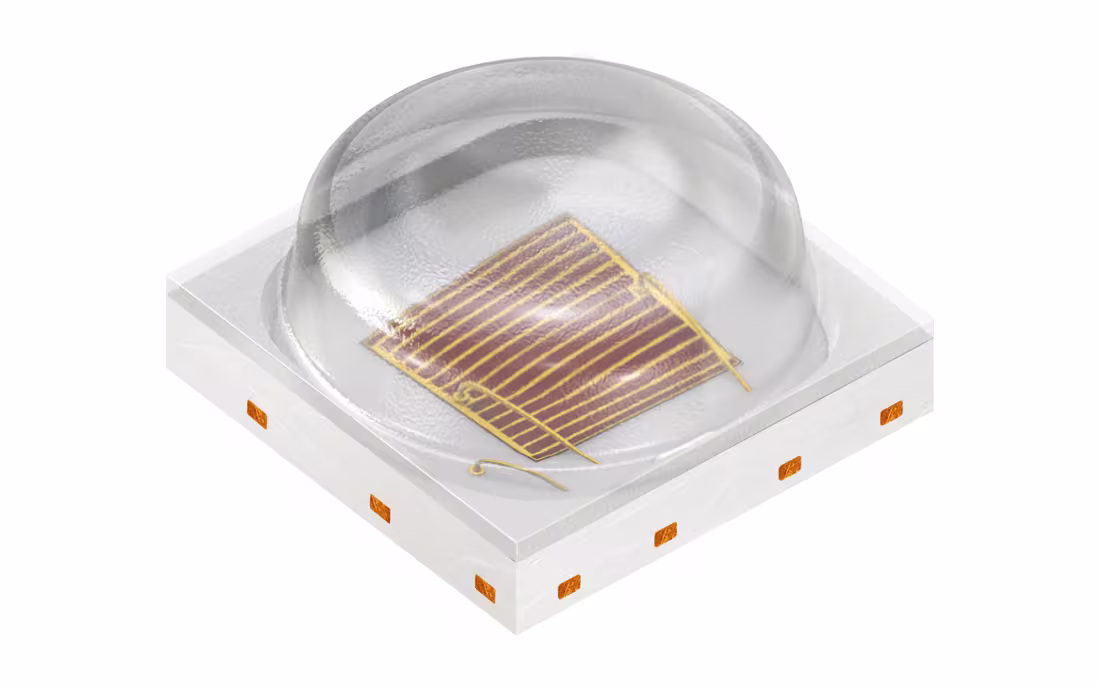

OSRAM OSCONIQ™ P 3737 (2W), GH PUBRA1.25

新内容
×
新内容

描述

OSCONIQ™ P 3737 Batwing以出众的光照均匀度、亮度提升和持久寿命为核心优势。独特蝙蝠翼（Batwing）光型分布，在减少热点效应的同时实现广角覆盖，成为大面积植物照明应用的理想选择。该产品提供多种精准波长可选，兼具设计灵活性与光谱精度，全面满足现代种植者的动态需求。
产品规格书
GH PUBRA1.25 (G3)
English
下载
选择并订购
联系我们 支持

详情

产品参数

发射颜色
Hyper Red (635-666 nm)
电功率
1.3 W
High
亮度
ΦV 典型值
34.4 lm
IV 典型值
9.76 cd
ΦE 典型值
1050 mW
IE 典型值
299 mW/sr
ΦP 典型值
5.9 µmol/s
光束角
∢ 典型值
140 °
工作温度
Top 最小值
-40 °C
Top 最大值
125 °C
尺寸
l 典型值
3.7 mm
w 典型值
3.7 mm
h 典型值
2.15 mm

订购信息

产品类别 描述 订购代码 可行
GH PUBRA1.25-T4U1-1-1-D Φ<_sub>P = 5.70 ... 6.30 μmol/s (IF = 700 mA) Q65115A3134 量产中

下载

产品规格书
GH PUBRA1.25 (G3) · Datasheet · PDF · en_US

应用说明
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
High power OSCONIQ™ P — Details on properties, handling and processing · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
欧司朗光电半导体有限公司 LED 的测量、 · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
LED 无铅回流焊的详细介绍 · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

资源
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

OSCONIQ P 3737 (2W) GH PUSRA1.25 ver2 42x26mm cmyk · Images · TIF
GH PUBRA1.25 OSCONIQ P 3737 42x26mm cmyk · Images · TIF
