OSRAM OSLON™ Pure 1414, GT VJLPL1.13

×

描述

The OSLON Pure™ 1414, one of the best lumen density, excellent efficiency and color homogeneity. The OSLON Pure™ 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.
产品规格书
GT VJLPL1.13
English
下载
选择并订购
联系我们 支持

详情

产品参数

发射颜色
True Green (513-545 nm)
电功率
0.93 W
High
亮度
ΦV 典型值
121 lm
IV 典型值
41.3 cd
ΦE 典型值
252 mW
IE 典型值
86 mW/sr
光束角
∢ 典型值
120 °
工作温度
Top 最小值
-40 °C
Top 最大值
100 °C
尺寸
l 典型值
1.4 mm
w 典型值
1.4 mm
h 典型值
0.75 mm

订购信息

产品类别 描述 订购代码 可行
GT VJLPL1.13-LPLS-T3T4-1 ΦV = 112.0 ... 150.0 lm (IF = 350 mA) Q65113A7111 量产中
GT VJLPL1.13-LRLU-T3T4-1 ΦV = 130.0 ... 180.0 lm (IF = 350 mA) Q65115A2206 量产中

下载

产品规格书
GT VJLPL1.13 · Datasheet · PDF · en_US

应用说明
OSLON™ Pure 1414 · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
欧司朗光电半导体有限公司 LED 的测量、 · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
LED 无铅回流焊的详细介绍 · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

资源
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

GT VJLPL1.13 OSLON Pure 1414 42x26mm cmyk.tif · Images · TIF

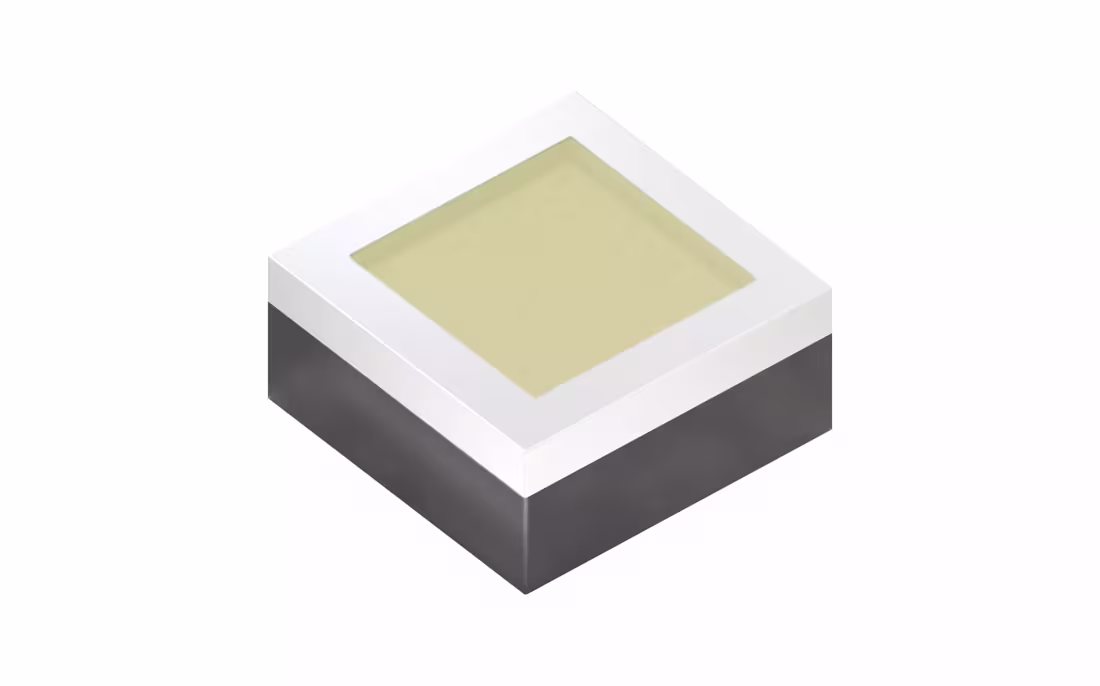

CSP1414_product_DC True Green_42x26mm_cmyk.tif · Images · TIF
