OSRAM DURIS™ E 5, GW JDSMS1.CC

停产
×
停产

描述

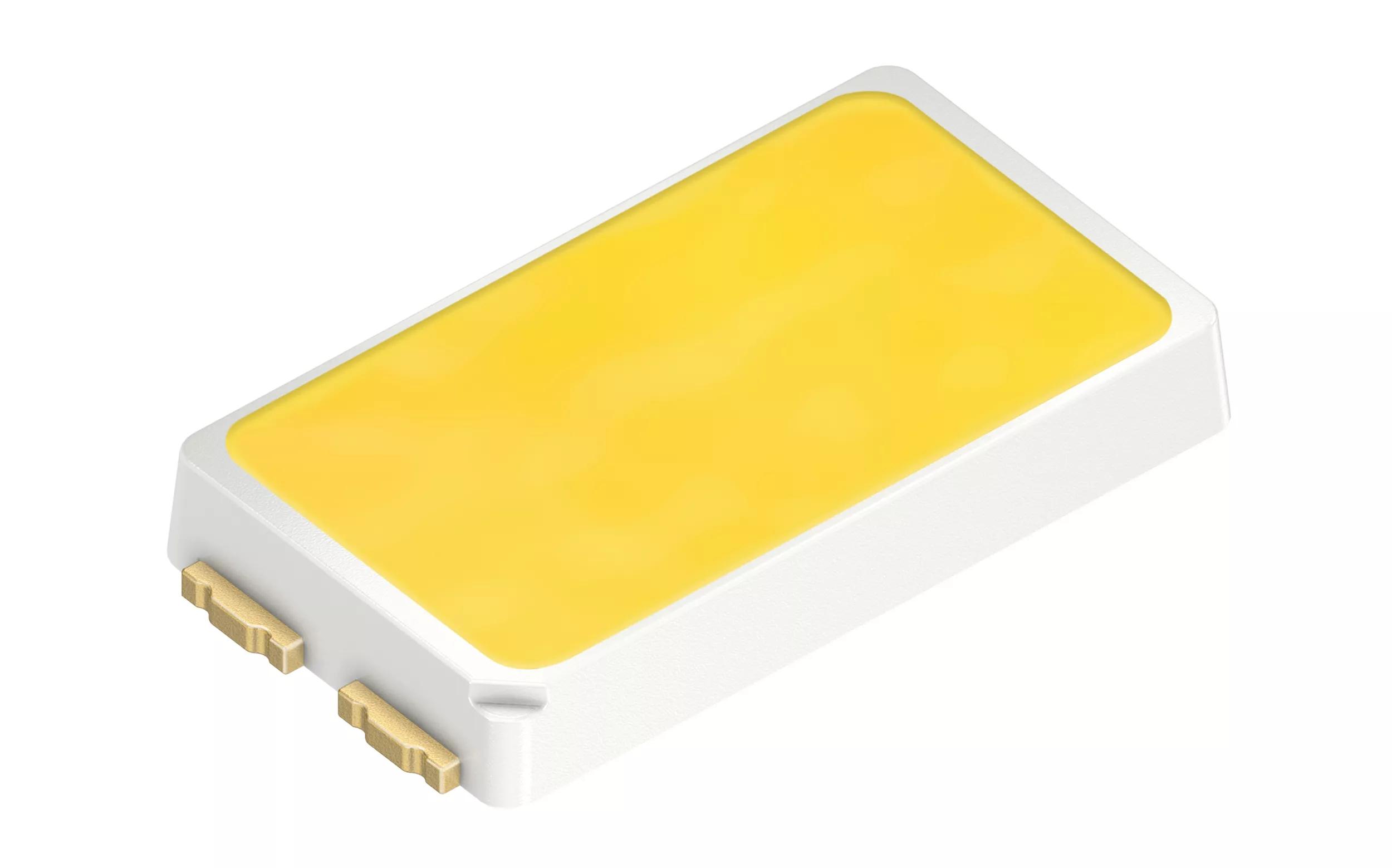

DURIS™ E 5 在一个紧凑的封装尺寸（5.6毫米x3.0毫米）内同时具备高发光效率和宽发光角度，这是DURIS™ E 5实现高性能系统设计和均匀照明应用的关键。
产品规格书
GW JDSMS1.CC
English
下载
选择并订购
联系我们 支持

详情

产品参数

发射颜色
White
CRI
90
电功率
0.38 W
Mid
亮度
ΦV 典型值
39.6 lm
IV 典型值
12.7 cd
ΦE 典型值
145 mW
IE 典型值
46.6 mW/sr
光束角
∢ 典型值
120 °
工作温度
Top 最小值
-40 °C
Top 最大值
85 °C
尺寸
l 典型值
5.6 mm
w 典型值
3.0 mm
h 典型值
0.77 mm

订购信息

产品类别 描述 订购代码 可行
GW JDSMS1.CC-EUFQ-5U8X-L1N2 = 10420.00 ... 13000.00 mcd, 2700 K (IF = 120 mA) Q65111A6277 已停产
GW JDSMS1.CC-FPFR-5O8Q-L1N2 = 11200.00 ... 14000.00 mcd, 3500 K (IF = 120 mA) Q65111A6276 已停产
GW JDSMS1.CC-FPFR-5R8T-L1N2 = 11200.00 ... 14000.00 mcd, 3000 K (IF = 120 mA) Q65111A6275 已停产
GW JDSMS1.CC-FQFS-5L7N-L1N2 = 12100.00 ... 15000.00 mcd, 4000 K (IF = 120 mA) Q65111A6274 已停产
