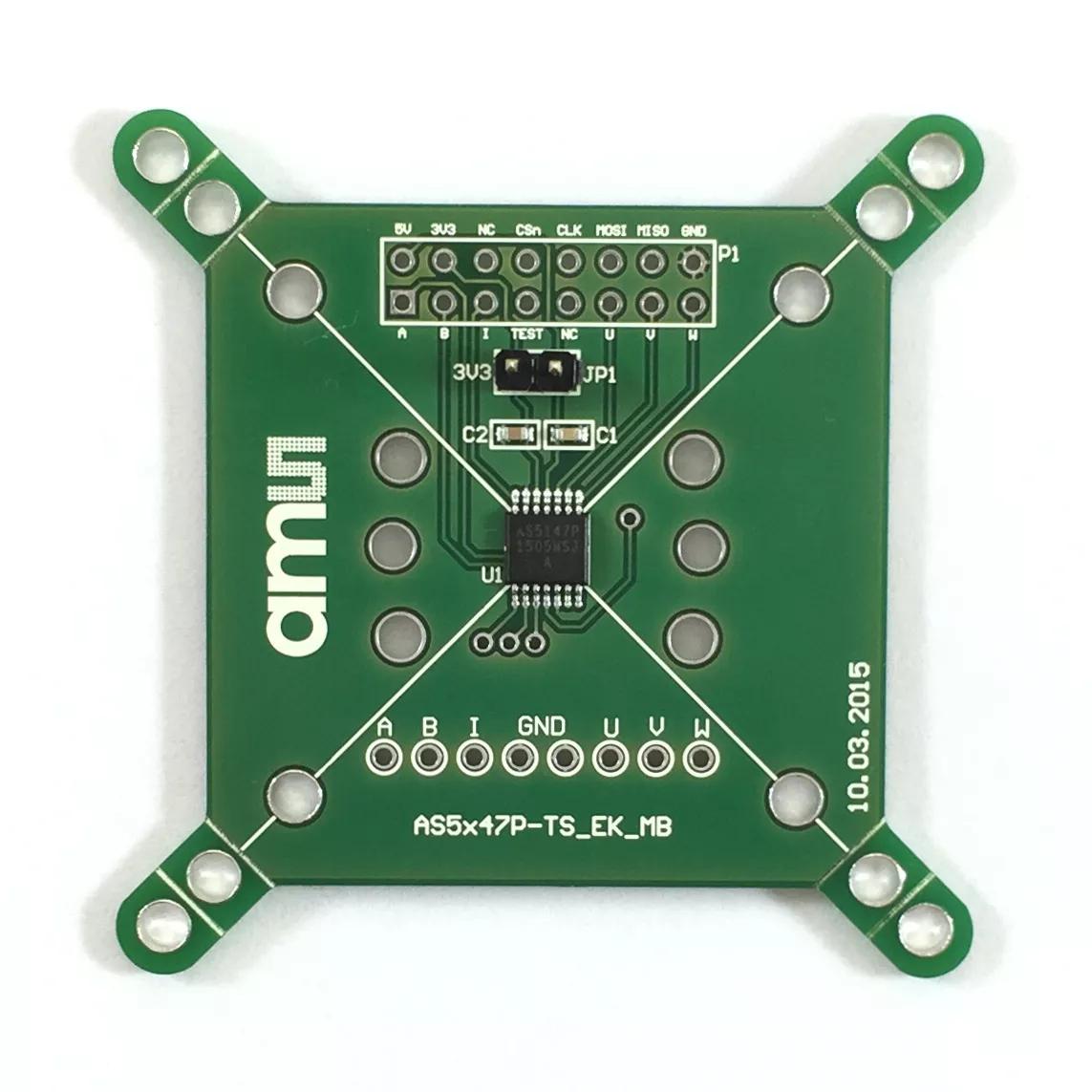

ams AS5X47P_TS_EVM_MB Evaluation board

The SD4Y Programmer is an in-system programming tool which is applicable for production environment. The SD4Y programmer supports: digital writing and reading; OTP programming and analog read back for the OTP verification. Additional the SD4Y programmer can use the AMS programming boards. The GUI and the Labview source code are available. Additional code samples for C; C++ and C# are available. Download latest software (UProg_SW_package_2v0.zip, 264MB)

The USB Interface & Programmer Box is an universal evaluation tool for magnetic position sensors with I2C or SPI interface. It comes with a 10-way cable to connect to a supported product on an existing board. The I2C or SPI wires are used for the communication (3.3V mode) and additionally the sensor can be powered from the USB I&P Box. By using the USB I&P Box Software, it is possible to read out the sensor data, write a configuration and to permanently program a configuration. Hardware and Software requirements: PC with Windows 7 or later and a USB-A port
